Vessel Support Services
Cromarty firth Marine ServicesOur fleet
Includes a multi-purpose 22m vessel and safety boats available for charter to support all types of marine work being carried out in UK waters.
Our vessels can support all types of work including:
- Transporting equipment
- Fresh water delivery
- Civil engineering projects
- Cable laying and repairs
- Survey works
- Laying moorings
- Salvage support
- Dive support
- Dredging
- Jetty and quay repairs
General
- Type of Vessel: Eurocarrier 2209
- Builder: Neptune Marine BV
- Build Date, Place: 2007, The Netherlands
- Classification: Bureau Veritas I 3/3 Special Service/Multi
- Certification: MCA Workboat Code Cat 2 (60 miles) 12 pax
Propulsion / Mechanical
- Main Engines: 2 x Caterpillar C18
- Total Power: 1200hp/894Kw@ 1800 rpm
- Marine Transmissions: 2 x Twin Disc MG516 DC 4.52:1
- Propulsion: 2 x 1350mm dia 4-blade fixed pitch propellers in Nozzles
Deck Equipment
- Hydraulic Crane: Heila 120-4SL – 120t/m (with 5t winch and r/c)
- Capacity: [9.3t @ 12.11,] inc remote control
- Anchor /Tow Winch: Hydrauvision 50 tonnes
- Tugger Winch: Hydrauvision 10 tonnes
- Bow Roller / Stern Roller: 820mm dia
- Towing Hook: 15t SWL
- Air Compressor: 14 cuft/min
- Welding Set: Rowac GL400
- Burning Gear: Oxy Acetylene
- Other: Wooden deck protection, 2 push knees
Tank Capacities
- Fuel Oil: 57.00m³
- Fresh Water: 42.00m³
- Lube Oil: 0.6m³
ACCOMMODATION
Wheelhouse with air conditioning seating for crew, large air conditioned
galley / day room with sanitary space. Below deck 2 x 1 person cabins, 1 x 2 person cabin. Large workshop/store, washing machine and dryer.

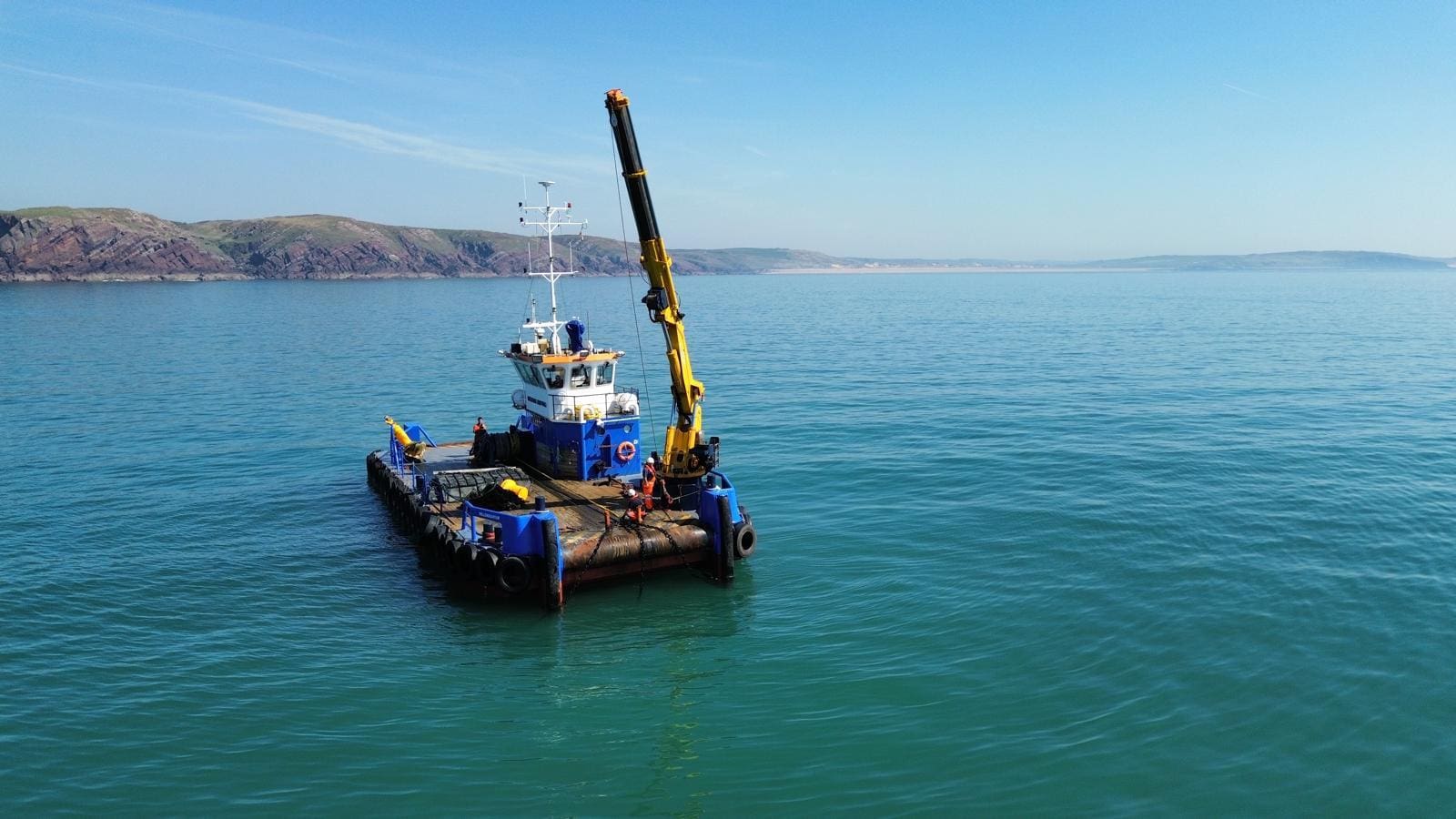

Workboat MARENDEAVOUR
Our new Multicat work boat ‘Marendeavour’, is a eurocarrier 2209 and was built by Neptune Marine BV in 2007. It is 22m long with a 9m beam and 1.80m draught.
Powered by twin Caterpillar C18 engines (1200hp, 894kW @1800rpm) she has a free running speed of 9 Knots and a bollard pull of approximately 15.0t.
The Vessel is equipped with a Helia 120-4SL hydraulic crane with a lifting capacity of 9.3t at 12.11m.
Accommodation on board comprises an air-conditioned wheelhouse, a galley, dry room and sanitary space. Two single person cabins are also provided together with a single two-person cabin, workshop and store located below deck.
The deck has a loading capacity of 80t.
DIMENSIONS
- Length O.A.: 22m
- Beam O.A.: 9m
- Depth at Sides: 3m
- Draft Aft: 1.8m
PERFORMANCE
- Free Running Speed: 9 knots (approx)
- Bollard Pull: 15.0t (approx)
- Deck Carrying
- Capacity: 80t
AUXILIARY EQUIPMENT
- Generator Sets: John Deere 4045TF258 (keel cooled) – 68Kw
- John Deere 4045TF258 (radiator cooled) – 75Kw
- Fuel Transfer Pumps: 40m³ per hr
- Water Transfer Pumps: 40m³ per hr
- Electrical System: 24V DC and 220/415V connections
NAVIGATION & COMMUNICATION EQUIPMENT
- Searchlight: Sunbeam Searchlight 250W
- Compass: Kotter type / Furuno SC-50 Satelitte Compass
- Radar: Furuno 1513
- GPS: Furuno GP-150D
- Echo Sounder: Furuno FCV-585
- VHF Radio: 2 x Sailor RT 5022DSC
- Handheld VHF: 2 x Tron TR20
- Navtex: Dual Channel NX700A
- Chart Plotter: PC with Euronav electronic charts
- AIS: Furuno FA170
- Satellite Phone: Sailor Iridium SC4000
- Phone: Motorolla GSM phone
- Auto Pilot: Radio Holland Seapilot 25
- SART: Tron Sart 9ghz
- EPIRB: Tron 40s 406mhz
CFMS TEMPEST
CFMS Tempest is a fast, 12m dive support vessel, MCA Category 2 coded and IMCA-registered. Fully equipped for commercial diving, surveys and rapid-response marine operations, she offers excellent manoeuvrability, onboard dive systems and capacity for up to 12 personnel.
General Characteristics
- MMSI: 232003835
- Call Sign: MYUY7
- Part 1 Registry: Official number 921311
- Coding: MCA Category 2 – 60nm offshore day & night. Category 1 capability operating from mother ship.
Load line exemption certificate - IMCA: CMID Registered
- MLC: Compliant
- Vessel Capacity: 12 PAX + 2 crew / 1000kg payload
- Port of London Auth.: Certified
- Police Boat Code: Certified
- Bareboat Option: Yes
Vessel Specification
- Manufacturer: Delta
- Hull Material: GRP
- LOA: 11.7m
- Beam: 3.6m
- Draft: 0.6m
- Tonnage: 8500kg
- Machinery: 2 x Yanmar 4LHA 240hp
2 x Hamilton water jet HJ241
Fischer Panda 4800i Generator - Fuel – Oils: Diesel 2 x 270L
- Fuel Burn: 90ltrs PH Combined @20kts
Systems & Welfare
- LED navigation & deck flood lights
- LED cabin lights – white / red
- Francis search light
- Mastervolt inverter / charger system
- 2 x Class 1 blue LED strobe lights
- Air suspension captain and crew seats
- Galley unit – hot / cold water
- Heads
Technical Specification
Dive Equipment – IMCA Compliant
- 3 x Diver control unit with regulators
- 8 x 50litre 300 Bar breathing air cylinders
- 2-Amcom 3 2830R/24 3 diver communication units
- Diver monitoring with hard drives
3-APC/UPS’s - 50m & 72m Umbilicals, cameras and lights
Navigation & Communications
- Garmin 7410 touch screen plotter / HD radar
- Side view and down view digital sonar
- Garmin GHS10i fixed VHF & DSC
- McMurdo Class ‘A’ AIS
- Loud hailer unit
Deck Arrangement
- Anchor windlass
- MOB / diver recovery davit
- Mother-ship stowage cradle
Workboat HUMBER ENGINEER
General
- Multicat / Workboat
- Rebuild by MMS Ship Repair & Dry Dock Co Ltd 2016
- Constructed in Steel
Propulsion / Mechanical
- Main Engines 2 x Caterpillar 3304T
- Propulsion 2 x Aquamaster ALT 250/4500
- Generator Hyundai 45kva

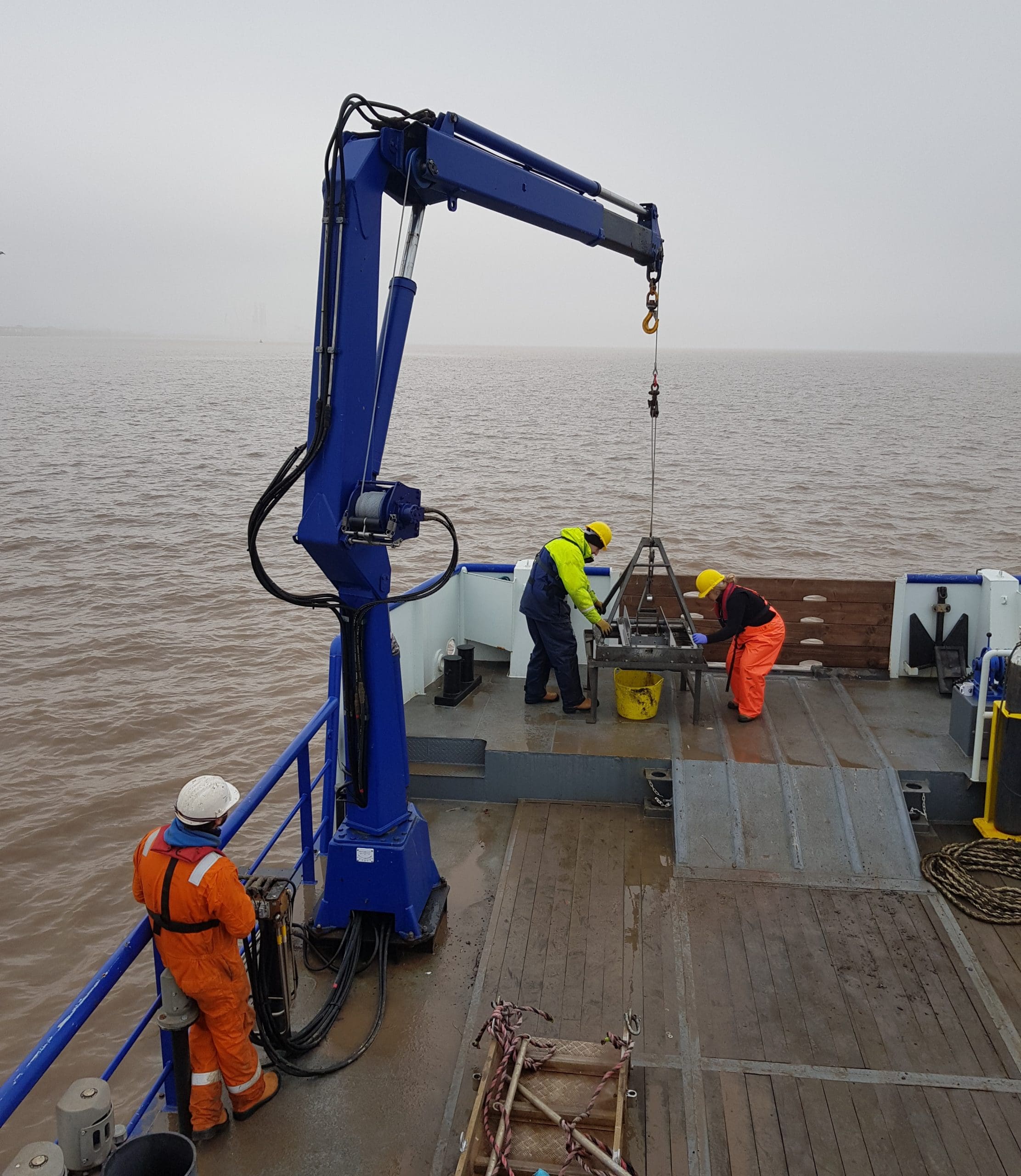

Deck Equipment
- Hydraulic Crane 3700kg @ 2.50m
- Hydraulic Winch 3.8 Tonne Pull Capacity
- Moon Pool
- Bow Roller
- Mooring System Spud Leg
Tank Capacities
- Fuel Oil Main Engine Port Daily Service 350 litres
- Main Engine Stbd. Daily Service 350 litres
- Port Bunker 2,250 litres
- Stbd. Bunker Tank 2,250 litres
- Generator Tank 2,230 litres
- Fresh Water 2,250 litres

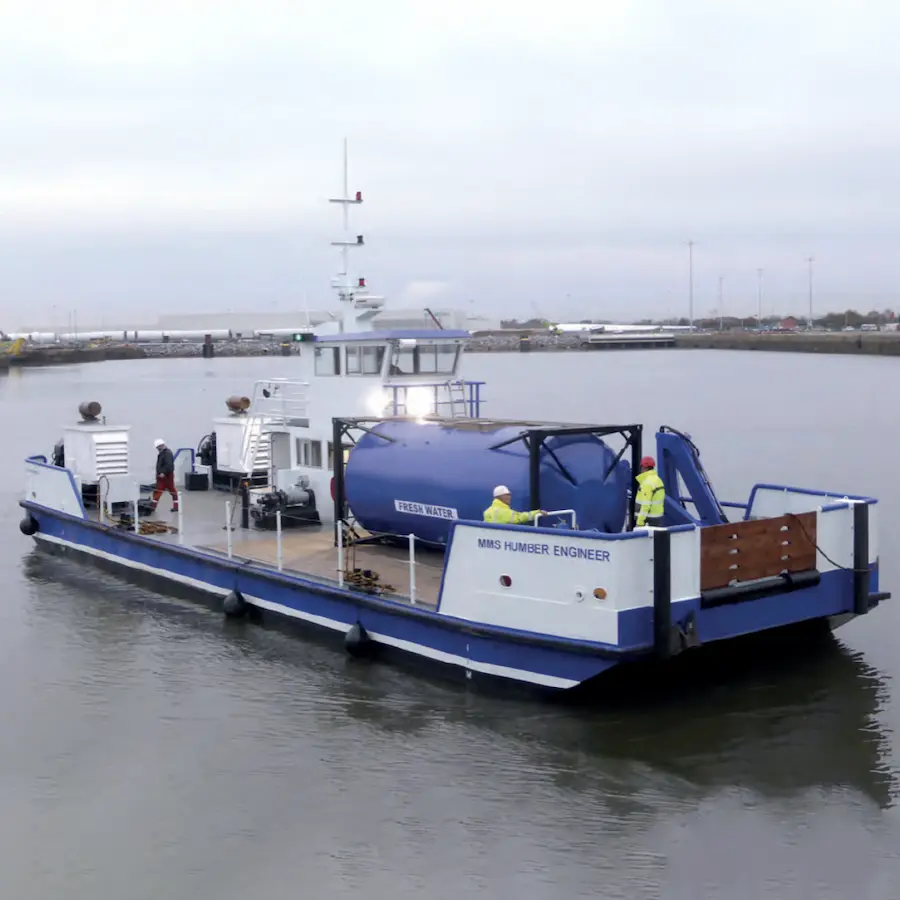

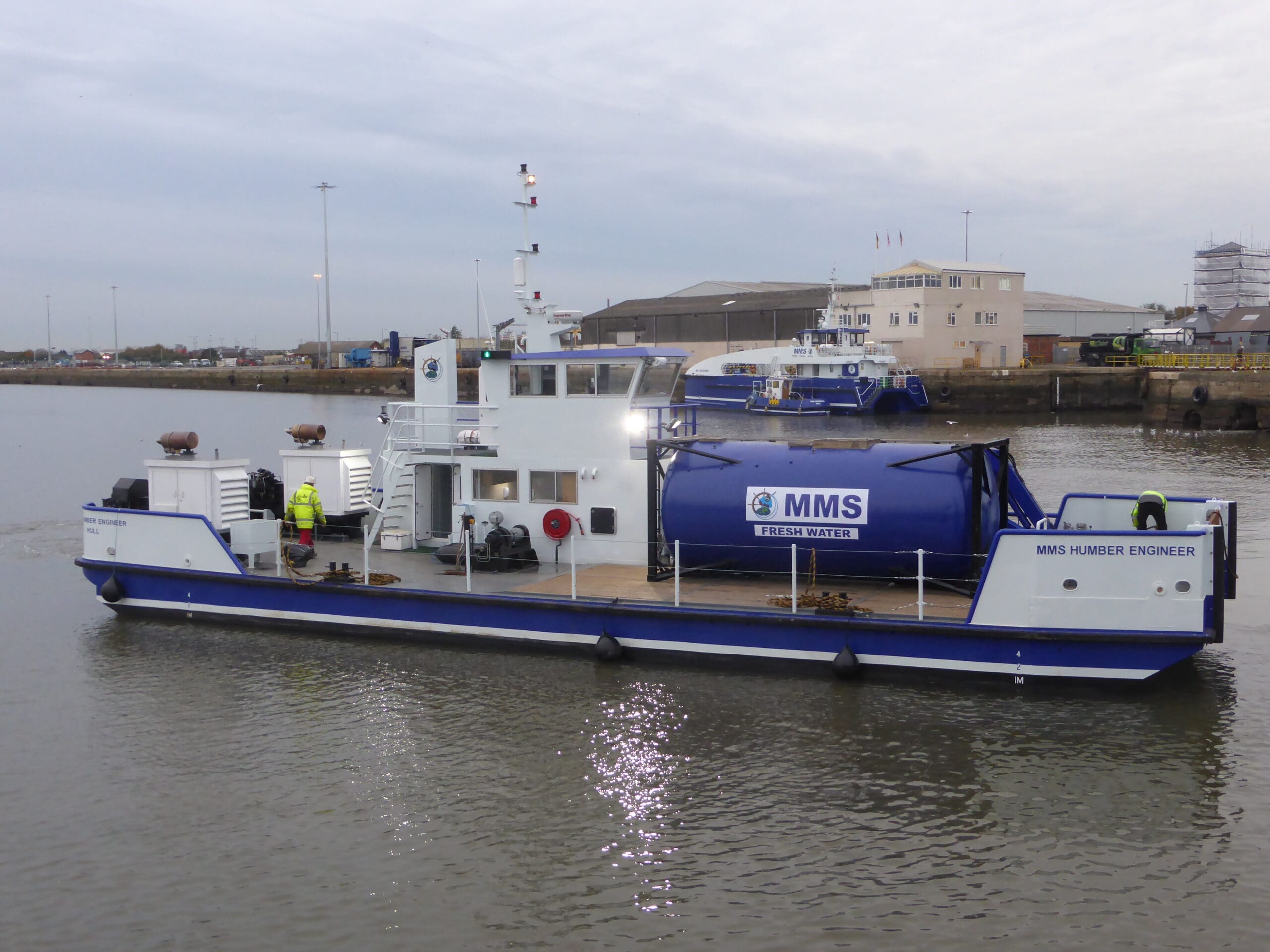

Workboat HUMBER ENGINEER
The Humber Engineer is a multi-purpose vessel available for charter to support all types of marine-related work being carried out in UK waters.
The vessel has been built to the highest standard and is approved by the MCA (MECAL) Workboat Code of Practice Category 3 regulations. Available for 24 hour coverage, 365 days per year, with a 2 man crew working 12 hour shifts if required.
The Humber Engineer can be utilised to assist in all types of work such as supporting marine civil engineering, dredging, diving, cable and pipe repair projects, delivery and collection of equipment. The vessel is equipped with a hydraulic crane and deck winch, a bow roller, moon pool and a spud leg for mooring. Crew accommodation comprises a combined mess galley, wash room and 2 x bunks.
ROLE CAPACITY
- Transporting equipment
- Fresh water delivery
- Civil engineering projects
- Cable laying and repairs
- Survey works
- Laying moorings
- Salvage support
- Dive support
- Dredging
- Jetty and quay repairs
Safety
- 12 man Canister Life Raft with Solas B Pack &
Automatic Hydrostatic Release - Life Jackets for a Maximum of 12 persons
- Rescue Zones with Jason’s Cradle Apparatus
- Fire Pump / Hose
- Hand-held VHF
Navigation
- Radar: Simrad HALO 3 Radar Scanner
- Plotter GPS: 2 x Simrad NSS12 EVO3S MFD Dual Station
- AIS: Raymarine AIS 650 Transponder / Receiver
- Transducer: Raymarine Low Profile Depth/Temp
- Communication: ICOM M423 VHF Radio
- Radar Reflector: Echomax 230 (Blipper SZ)
- Autopilot: Simrad AP70MKII and JLR-21 Satellite Compass
Accommodation
- Fully furnished wheelhouse, galley/mess room,
twin bunks, wash/drying room

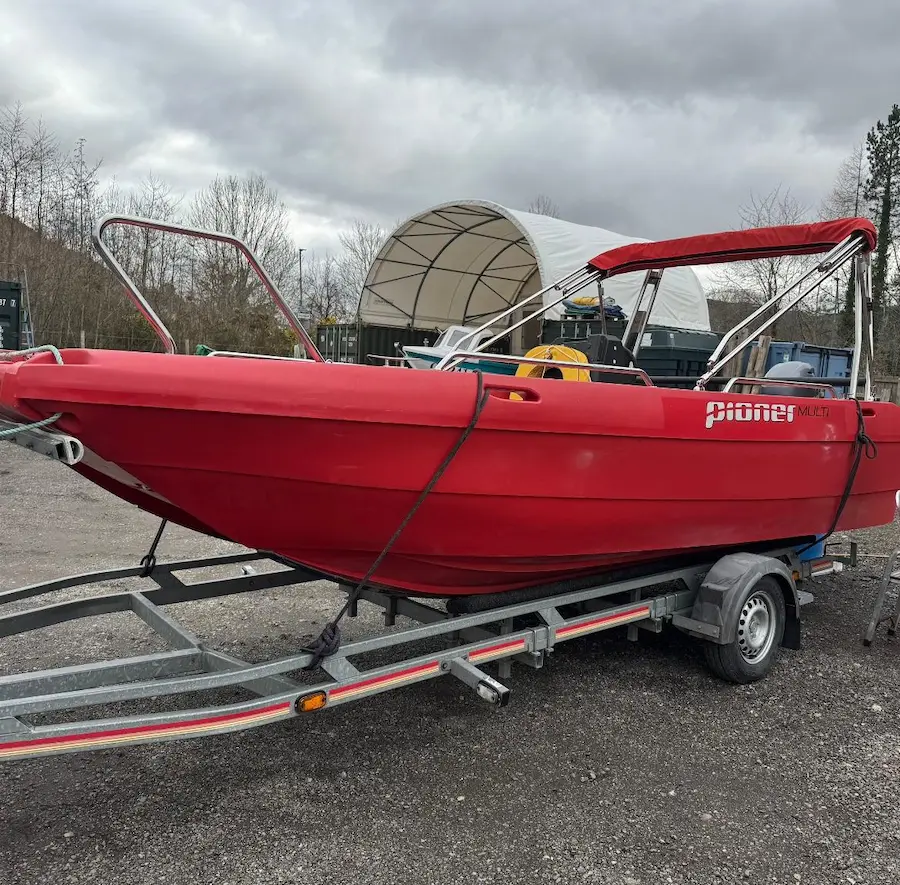

PIONER MULTI WORKBOAT
Key Features:
- High load-carrying capacity and excellent stability
- Bow gate for easy loading/unloading of equipment or personnel
- Durable polyethylene construction ideal for harsh environments
- Suitable for inshore, harbour, and light offshore use
| Length: | 5.3 mtrs |
| Breadth: | 2.15 mtrs |
| Dry weight: | 466 kgs |
| Engine: | 70hp Yamaha Outboard |
| Maximum Capacity: | 8 persons (including crew) |

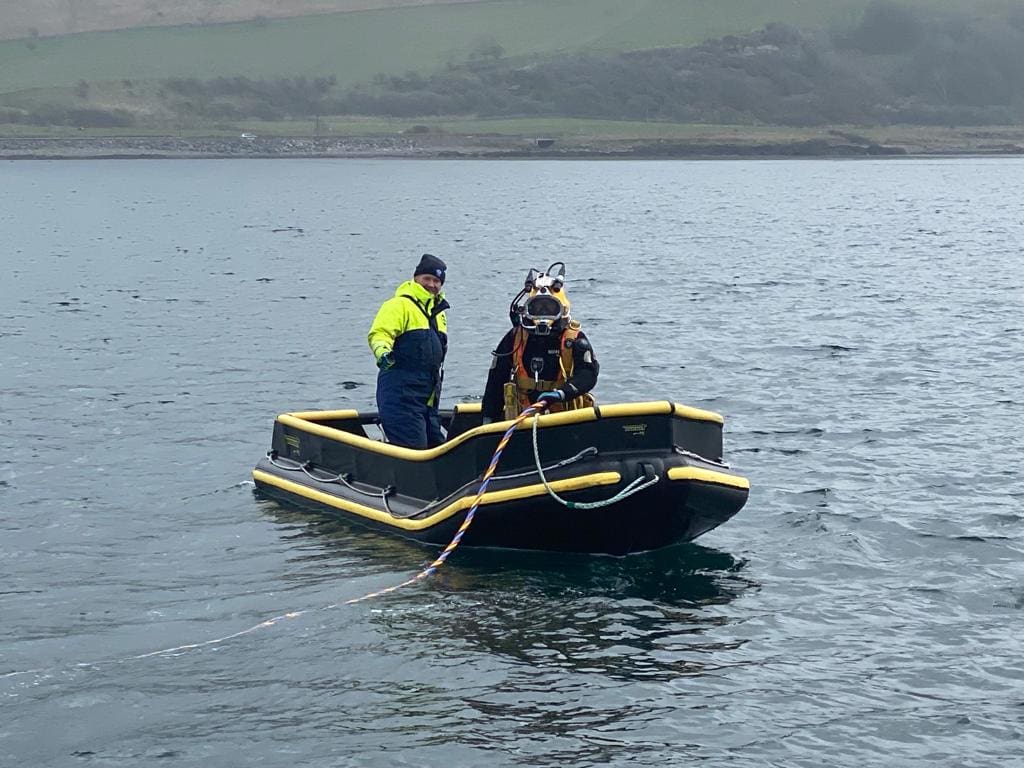

Fusion Marine 490 Safety workboat
Fusion Marine 490 workboat
| Length: | 4.92 mtrs |
| Breadth: | 2.08 mtrs |
| Dry weight: | 450kgs |
| Engine: | 25hp Yamaha outboard |
| Max load: | 800kgs (7 Persons) |
